SFX Remote Firing System & Sequencer
Easy to use combined wireless firing system and pyro sequencer
The Problem
The SFX industry uses a mix of firework firing systems, homemade firing systems, or feature-limited kit from other manufacturers.
To achieve remote firing of pyro or variable timing of solenoids requires a mix of remote firing systems, pyrotechnic sequencers, time-delay relay boxes and various external battery packs and cables.
This is messy, unreliable and hard to fault find.
We have developed a one box solution designed specifically for the demanding SFX environment.
The One Box Solution
Designed from the ground up for use in the demanding Film & TV SFX environment.
This is not a complicated firework firing system re-purposed for SFX pyrotechnics.
The SFX Remote Sequencer is capable and flexible while staying simple, reliable and extremely easy to use.
The guys love it ... it has become our firing system for nearly everything ... pyro, valves, bomb releases, kickers ...
Features
Easy to use
No complex menus. No manual required. One screen control with large, tactile buttons.
Grab and Go
Designed specifically for quick deployment, flexibility and ease of use in the challenging SFX environment.
Well built
Rugged, high quality construction. Designed and made in the UK.
Full wireless control

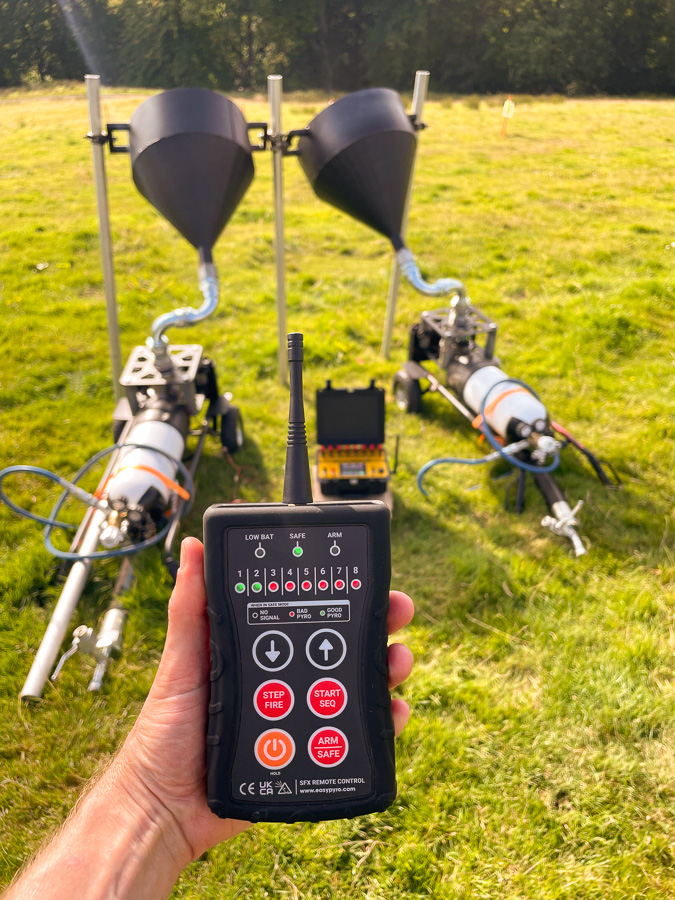

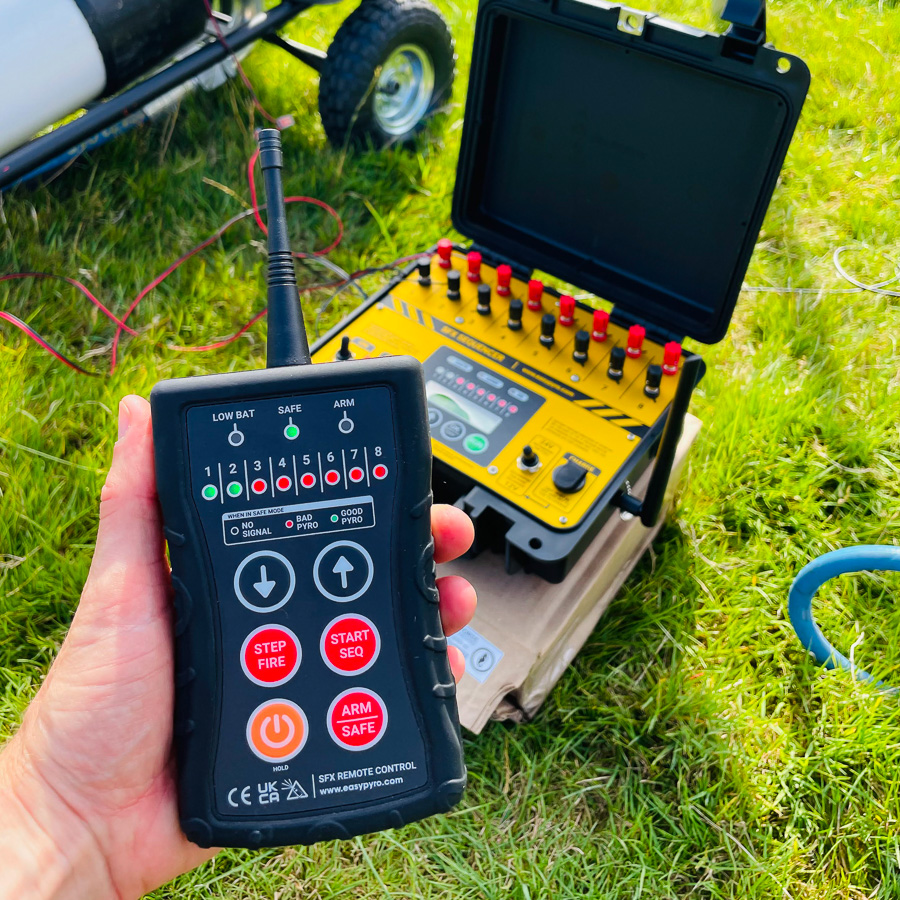

Rugged long range handheld remote. Secure two-way radio link shows signal strength and continuity status in real time.
Manual Fire
Large fire button lets you step through channels instantly.
Sequence Fire
Fast sequences with same or different delays per channel. Set hold-on times per channel.
Safe Preview
One button preview of timing sequences for easy demonstration and adjustment
Expandable
Connect multiple units with cable for longer sequences.
Pyro & Solenoids
Switch between 12V and 24V for all pyro and solenoids.
Flexible power options
Internal or external battery options. Power-tool battery compatibility.
Backup wired trigger
Optional backup trigger or voltage input to start the sequence.
Technical Specifications
| Size (base unit) | 27 x 25 x 12 cm (11 x 10 x 5 inch) |
|---|---|
| Weight (base unit) | 3 Kg |
| Frequency | 868.8 MHz LORA Spread Spectrum. |
| Range | 400M line of sight. More with directional antenna. |
| Channels | 8 (link for longer sequence) |
| Battery | Internal 2 x 12V SLA battery. |
| Power Connector | Options available |
| Output voltage | 12V / 24V |
| Output current | Max 15A per channel. |
| Delay | 0.00s → 9.99s |
| Hold-on time | 0.05s → 9.99s |
| Continuity test | ✓ |
| Secure 2-way radio | ✓ |
| Signal strength meter | ✓ |
| Wired trigger option | ✓ |
| Protected outputs | ✓ |
| Remote continuity check | ✓ |
| Different delays per channel | ✓ |
| Instant manual firing | ✓ |
| Small and portable | ✓ |
| Easy to use | ✓ |
