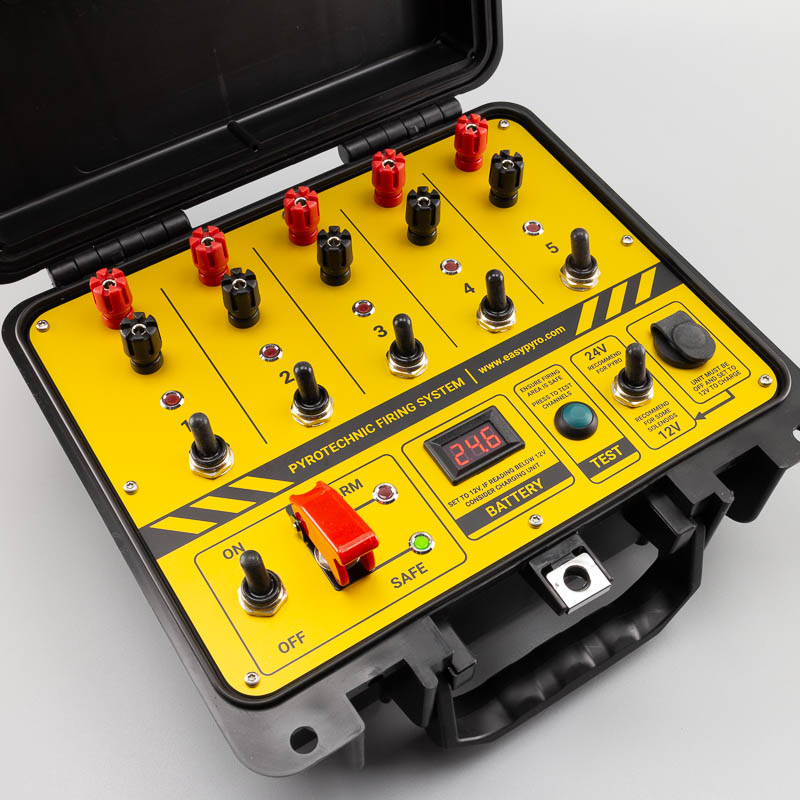

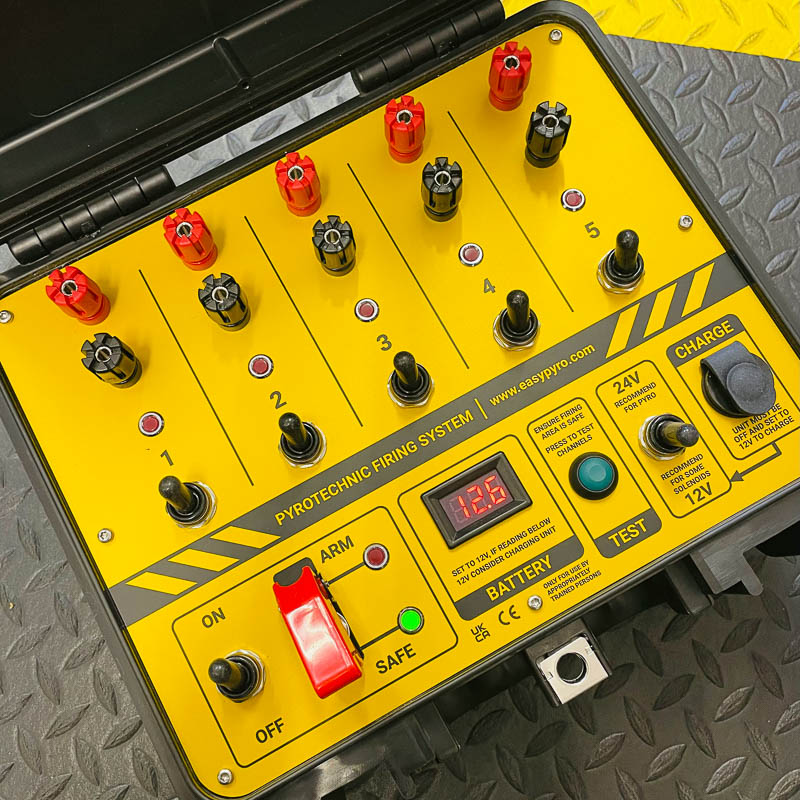

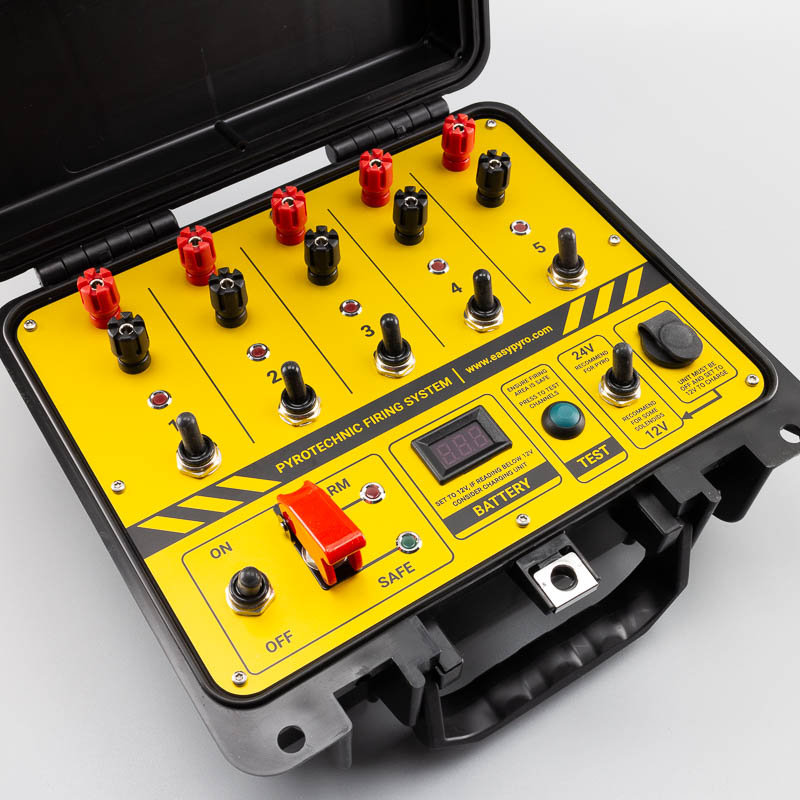

5 Channel Wired Switch Box
High quality wired firing system for all pyrotechnics and solenoids.
Wired Simplicity
Built solidly for firing pyrotechnics in the film and TV environment, our simple and reliable wired pyro switch boxes will provide a lifetime of service.
Special use cases
The pyro switch boxes also provide service in many other specialist pyrotechnic situations such as location safety training, battle simulation, bird netting and live events.
Customisable for you
Each unit is custom made in our workshop in the UK and can be altered to your requirements.
Latching switches and external battery connections are two common requests.
Great quality, hasn't missed a beat!
Features
Easy to use
Anyone with minimal training can use our pyrotechnic firing systems safely.
Internal battery option
Designed for easy transportation and deployment.
High quality construction
Armoured case, aluminium front panel and high quality components.

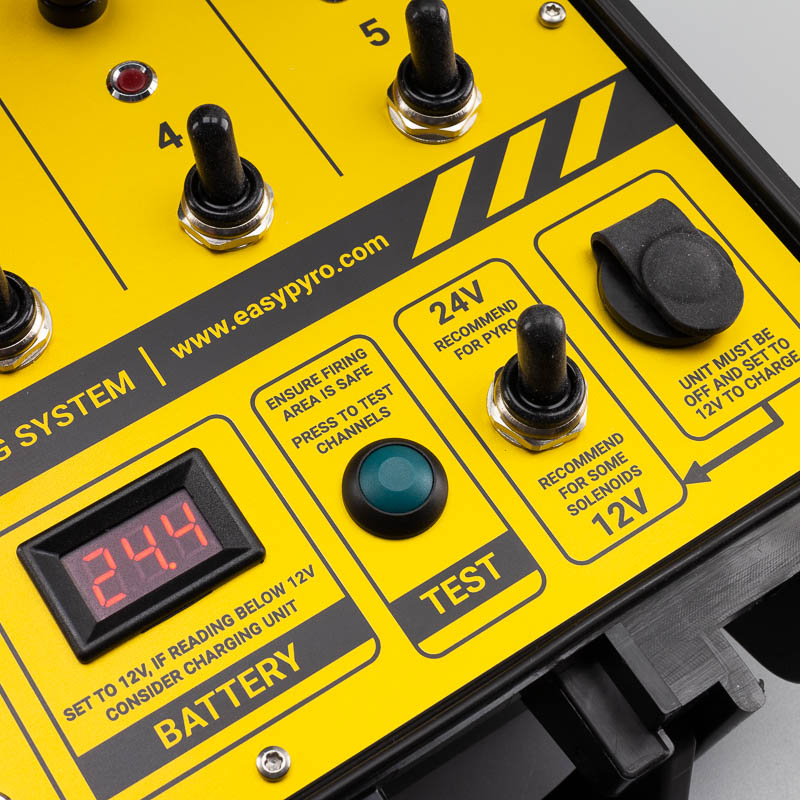

Selectable output voltage
Control 12V and 24V pyro and solenoids.

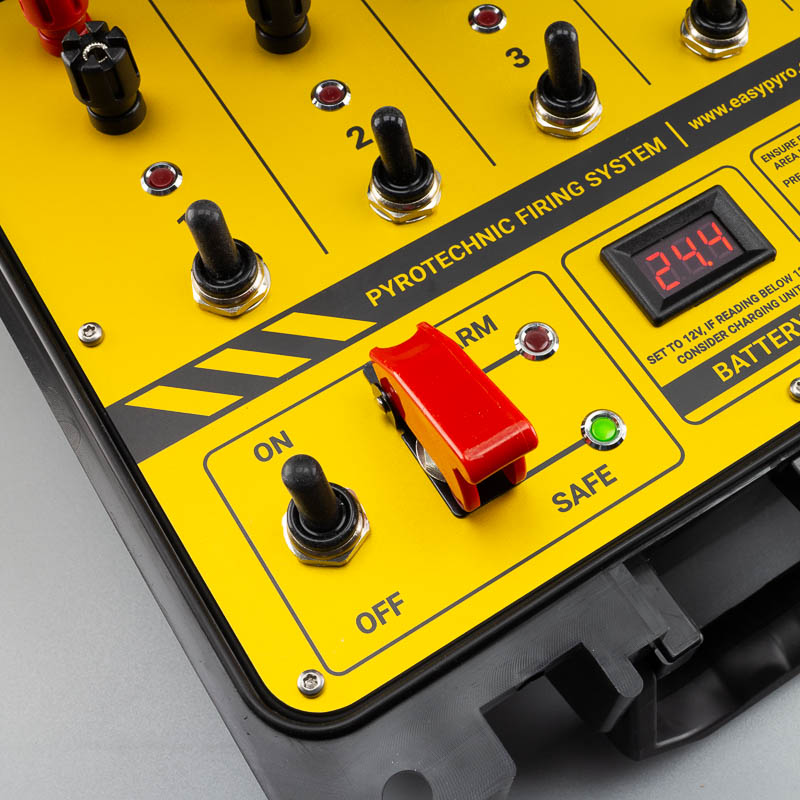

Waterproof toggle switches
Large rubber booted toggle switches for easy operation.

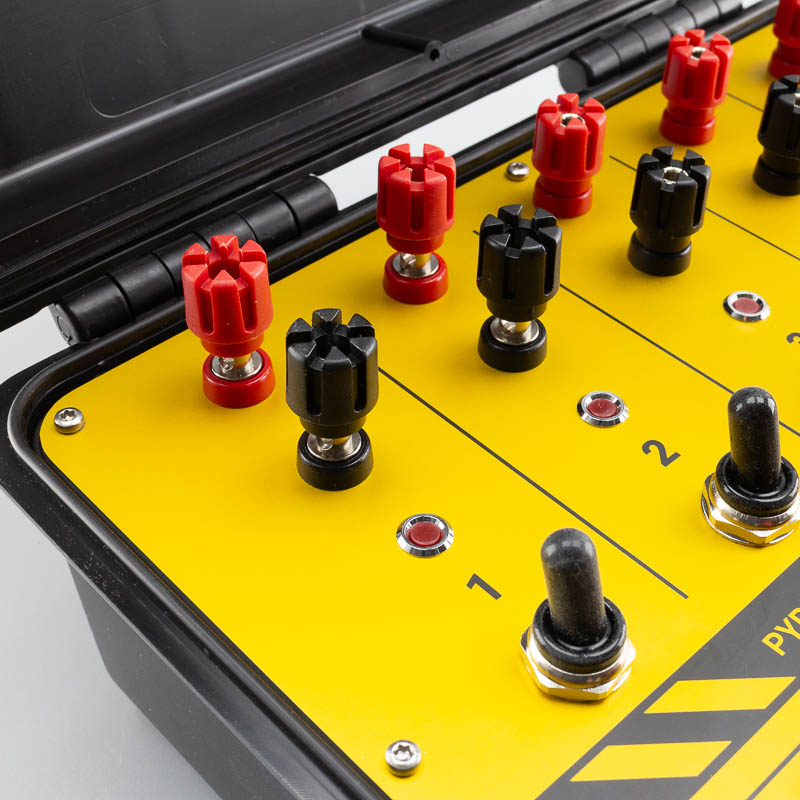

Strong screw down terminals
Nickel plated binding posts for secure connections.
Continuity Test
Bright visual continuity test on all channels.
Pyro & Solenoids
Switch between 12V and 24V for all pyro and solenoids.
Flexible power options
Internal or external battery options.
Technical Specifications
| Size | 27 x 25 x 12cm (11 x 10 x 5inch) |
|---|---|
| Weight (base unit) | 3 Kg (6.6 Lbs) |
| Channels | 5 |
| Output voltage | 12V / 24V |
| Output current | 20+ Amps |
| Test Current | 12 / 24 mA |
| Continuity test | ✓ |
| Instant manual firing | ✓ |
| Selectable output voltage | ✓ |
| Small and portable | ✓ |
| Easy to use | ✓ |
