'Rhinofire' Wired Sequencer
Original Rhinofire firework sequencer for quick and easy timed fireworks
The Problem
The SFX industry typically uses a mix of firework firing systems, home-brew firing systems, or feature-limited kit from other manufacturers.
To achieve remote firing of pyro or variable timing of solenoids requires a mix of single hit remote firing systems, standalone sequencers, time-delay relay boxes and various external battery packs and cables.
This is messy, unreliable and hard to fault find.
We have developed a one box unified solution designed specifically for the demanding SFX environment.
Built for SFX
Designed from the ground up for use in the demanding Film & TV SFX environment. This is not a complicated firework firing system re-purposed for SFX pyrotechnics. Capable and flexible while staying simple, reliable and extremely easy to use.
Core Features
✅ Simple, reliable, easy to use. No complex menus. Pick it up after months and it still makes sense. One screen control with large, tactile switches built for gloved hands and field use.
✅ Full wireless control. Rugged wireless handheld remote + field unit. Secure two-way radio link shows signal strength and channel status in real time.

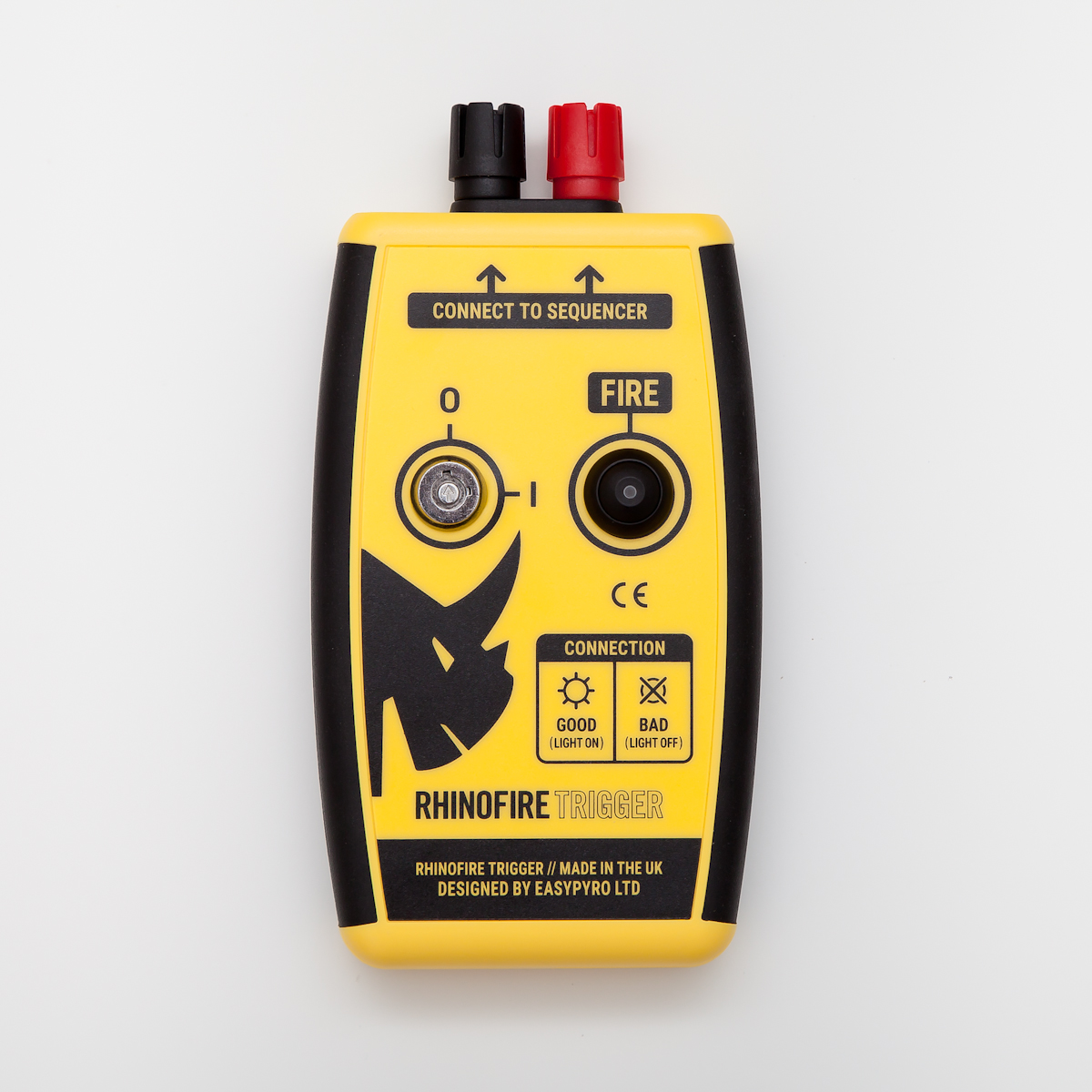

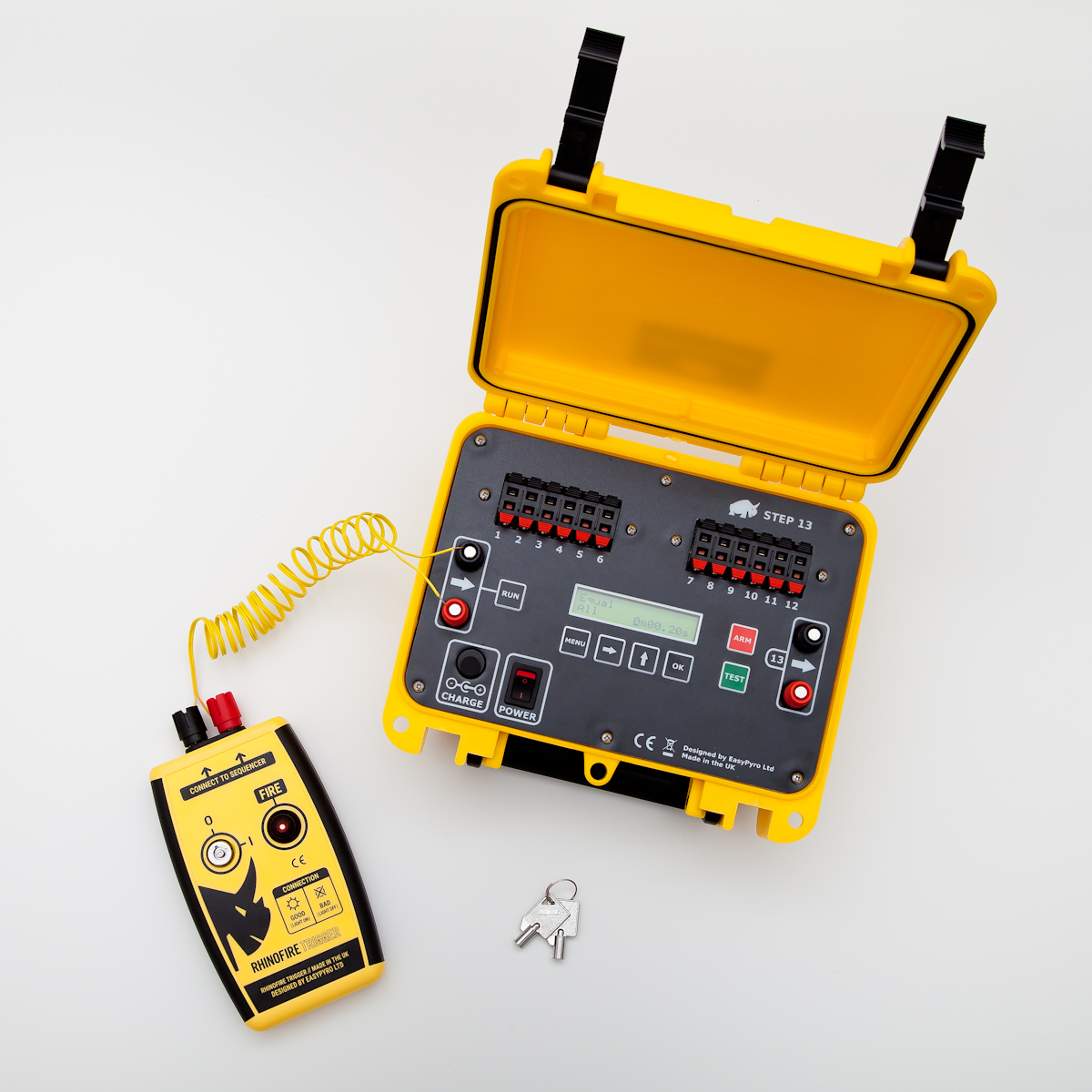

✅ Optional wired trigger. Trigger the sequence with a voltage pulse from another source or our Trigger Unit.
✅ Manual fire mode. Large FIRE button lets you step through channels instantly. Press and release to advance with no firing delay. Skip channels with UP/DOWN. Hold-on times are fully respected per channel.
✅ Programmed sequences. Set same/different delays per channel from 0.00s to 9.99s and hold times from 0.05s to 9.99s for precise timing control.
✅ Flexible sequencing. Mix delays, simultaneous firing (0 delay), and custom hold-on times per channel. Use RUN mode to safely preview before firing.
✅ Expandable. Interlink units with cable for seamless long sequences.
✅ Solenoids & pyrotechnics. Switch between 12V and 24V operation for full compatibility with pyrotechnics and solenoids.
✅ Power options. Internal battery for portability or optional external battery connector for visual disconnect and peace of mind.
... a very useful firing system tool with all features you need!...
Features

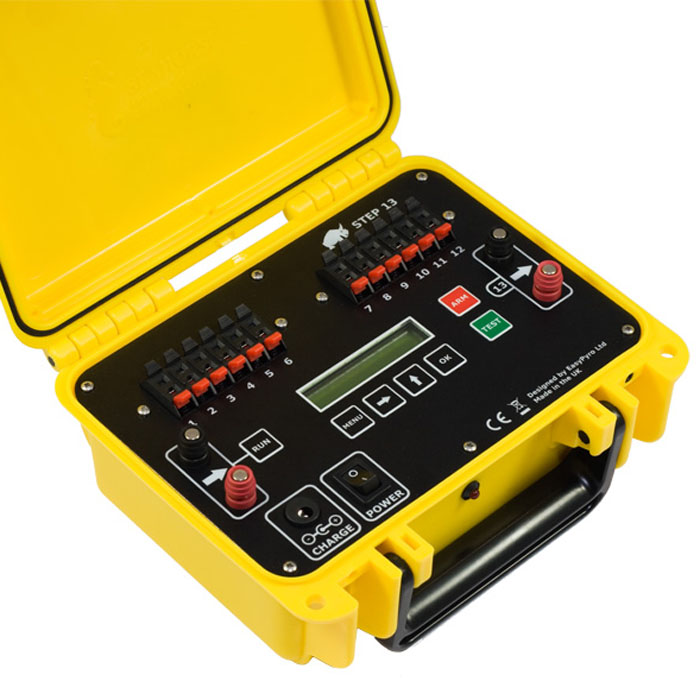

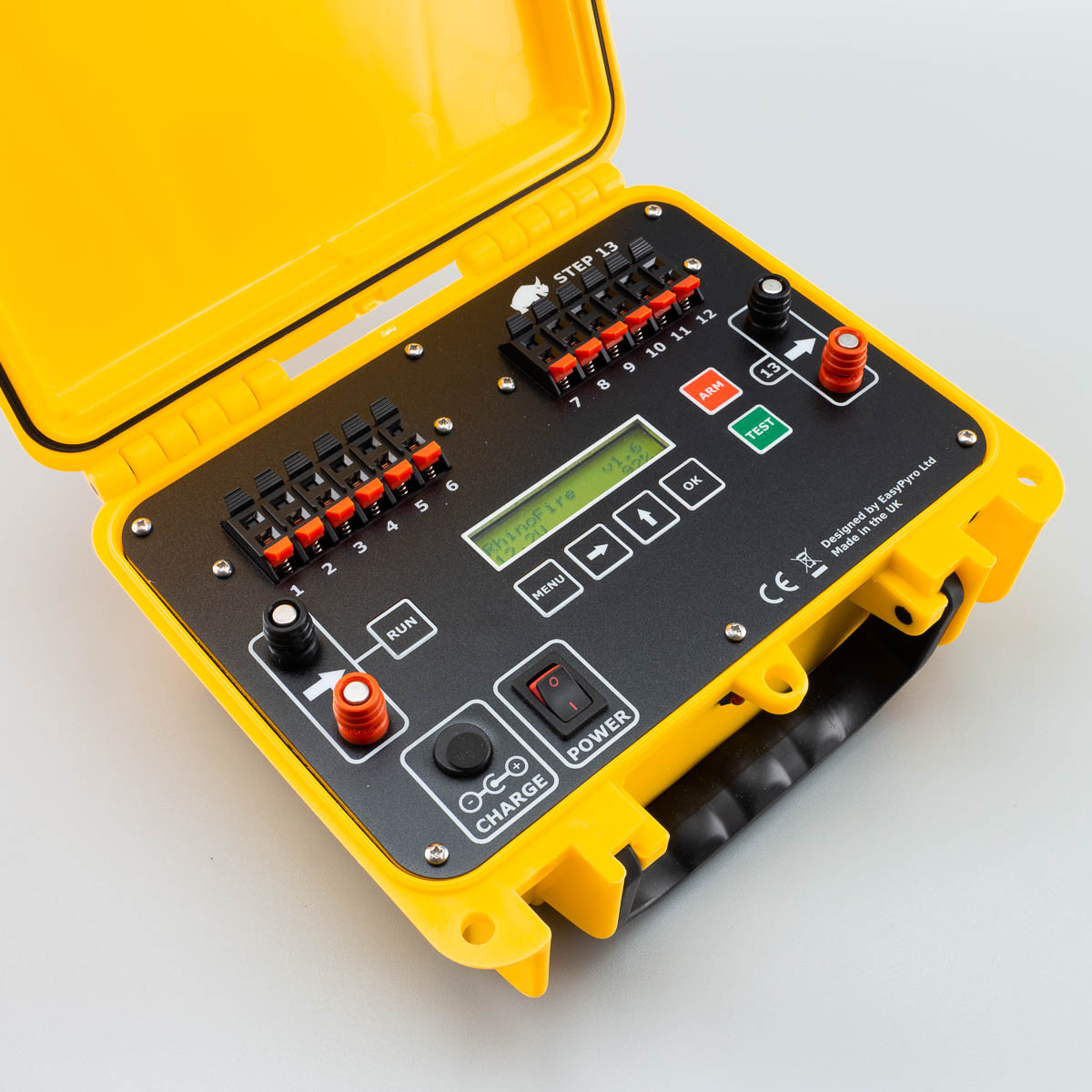

Easy to use
No complex menus. No manual required. One screen control with large, tactile buttons.
Grab and Go
Designed specifically for quick deployment, flexibility and ease of use in the challenging SFX environment.

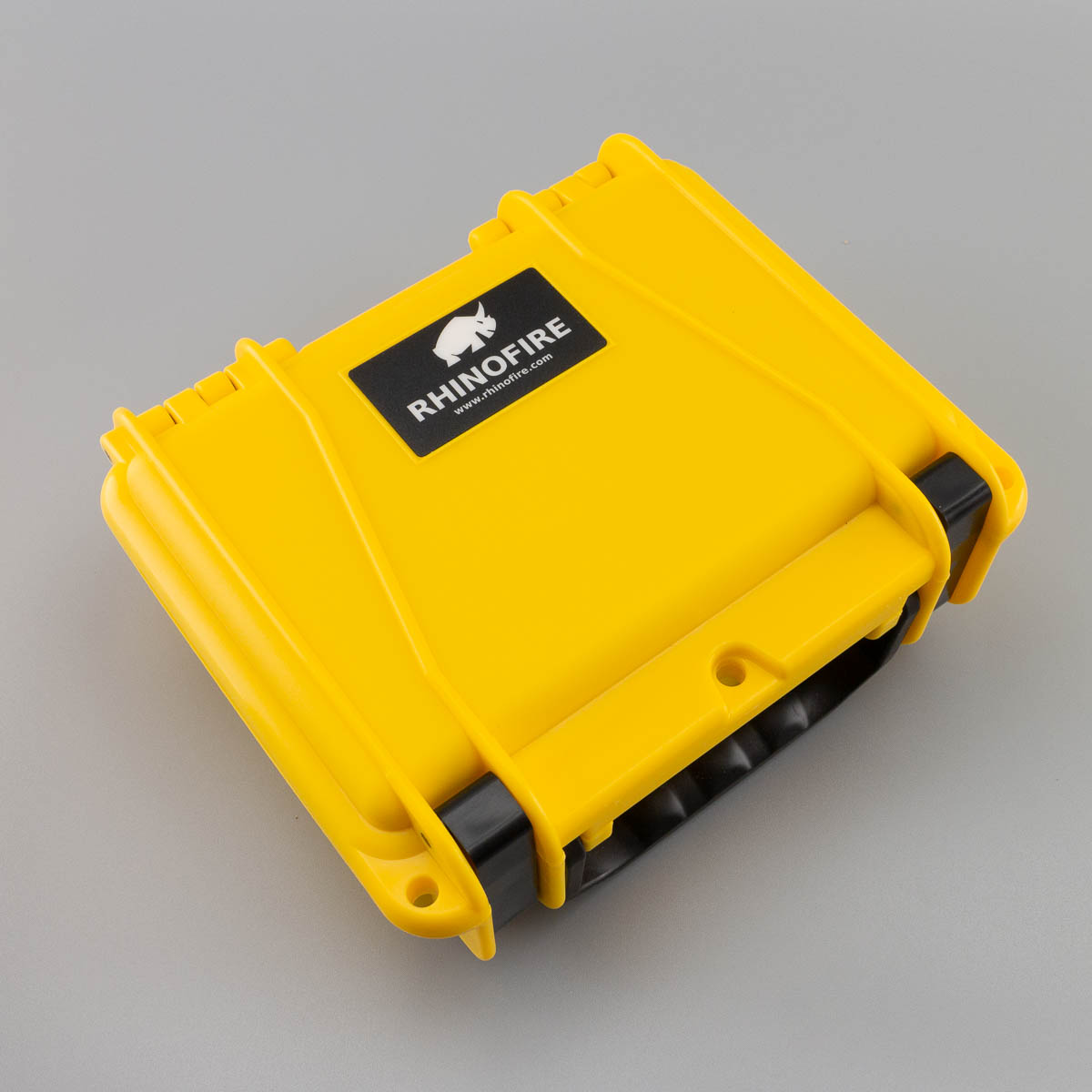

Well built
Rugged, high quality construction. Designed and made in the UK.
Full wireless control
Rugged long range handheld remote. Secure two-way radio link shows signal strength and continuity status in real time.

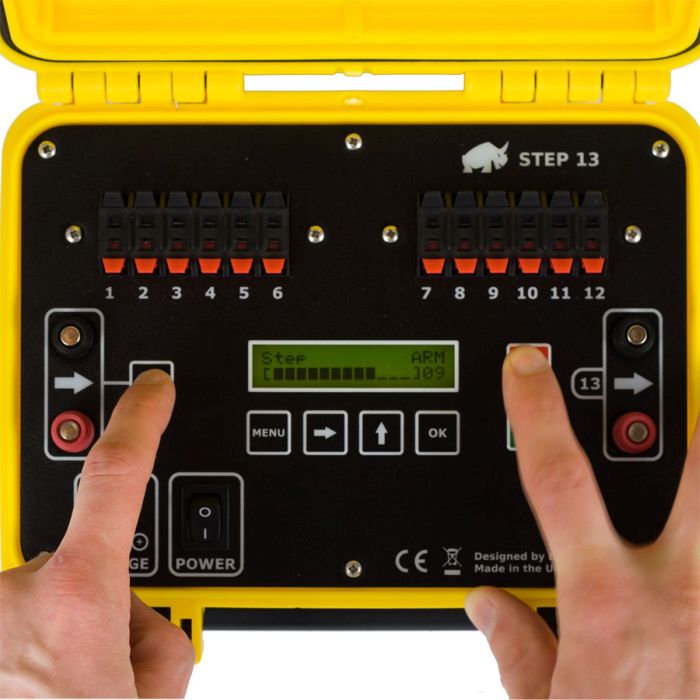

Manual Fire
Large fire button lets you step through channels instantly.
Sequence Fire
Fast sequences with same or different delays per channel. Set hold-on times per channel.
Safe Preview
One button preview of timing sequences for easy demonstration and adjustment

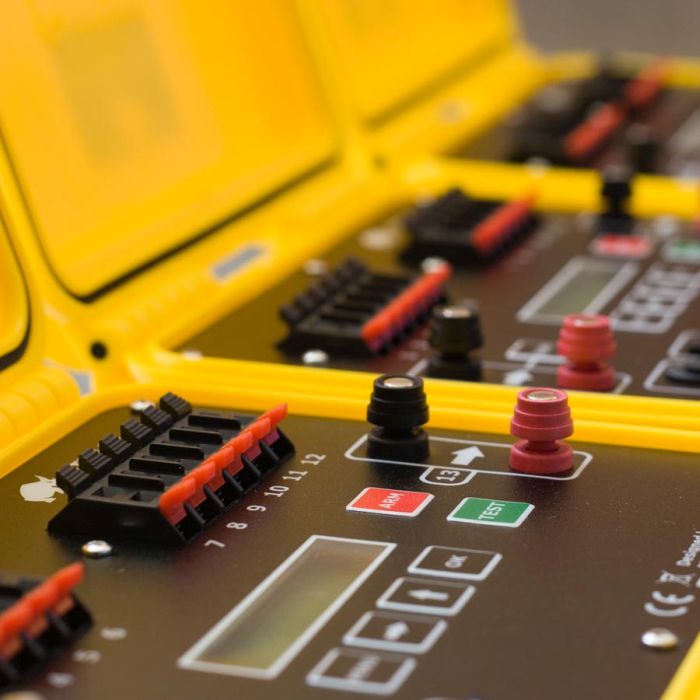

Expandable
Connect multiple units with cable for longer sequences.
Pyro & Solenoids
Switch between 12V and 24V for all pyro and solenoids.
Flexible power options
Internal or external battery options. Power-tool battery compatibility.
Backup wired trigger
Optional backup trigger or voltage input to start the sequence.
Technical Specifications
| Size (base unit) | 27 x 25 x 12 cm (11 x 10 x 5 inch) |
|---|---|
| Weight (base unit) | 3 Kg |
| Size (base unit) | 27 x 25 x 12cm (11" x 10" x 5") |
| Weight (base unit) | 3Kg |
| Frequency | 868.8 MHz LORA Spread Spectrum modulation |
| Range | 400M clear line of sight (base unit elevated by 50cm). More with directional antenna. |
| Channels | 8 (units can be linked with cable for longer sequence 16, 24, 32 etc) |
| Battery (internal or external option) | Internal 2 x 12V batteries for extreme portability. External connector or battery box of your choice. |
| Output voltage | 12V or 24V globally selectable |
| Output current | Limited by batteries and protected outputs. 15 Amps per channel. |
| Selectable delay | 0.00s to 9.99s |
| Selectable hold-on time | 0.05s to 9.99s |
| Continuity test | ✅ Yes |
| Secure 2-Way radio communication | ✅ Yes |
| Signal strength meter | ✅ Yes |
| Backup wired manual trigger option | ✅ Yes |
| Over-current protected outputs | ✅ Yes |
| See channel continuity on remote | ✅ Yes |
| Separate DELAY / HOLD-ON times per channel | ✅ Yes |
| Instant manual firing | ✅ Yes |
| Small, rugged, portable unit | ✅ Yes |
| Easy to use and understand | ✅ Yes |
