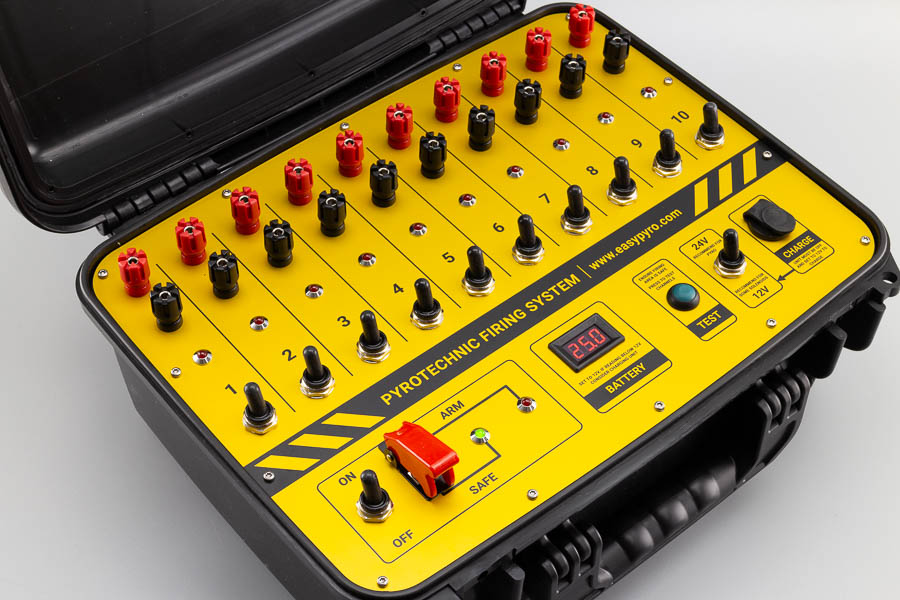

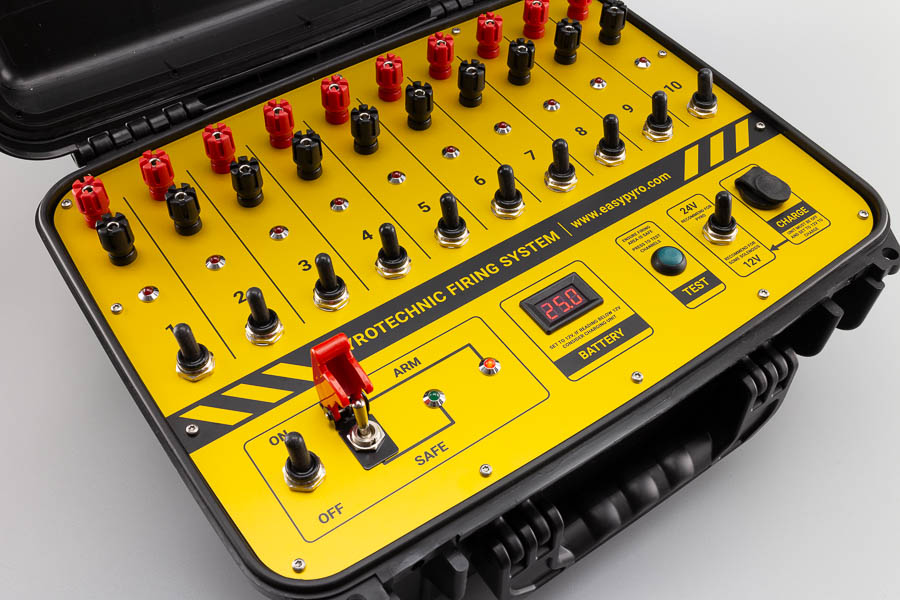

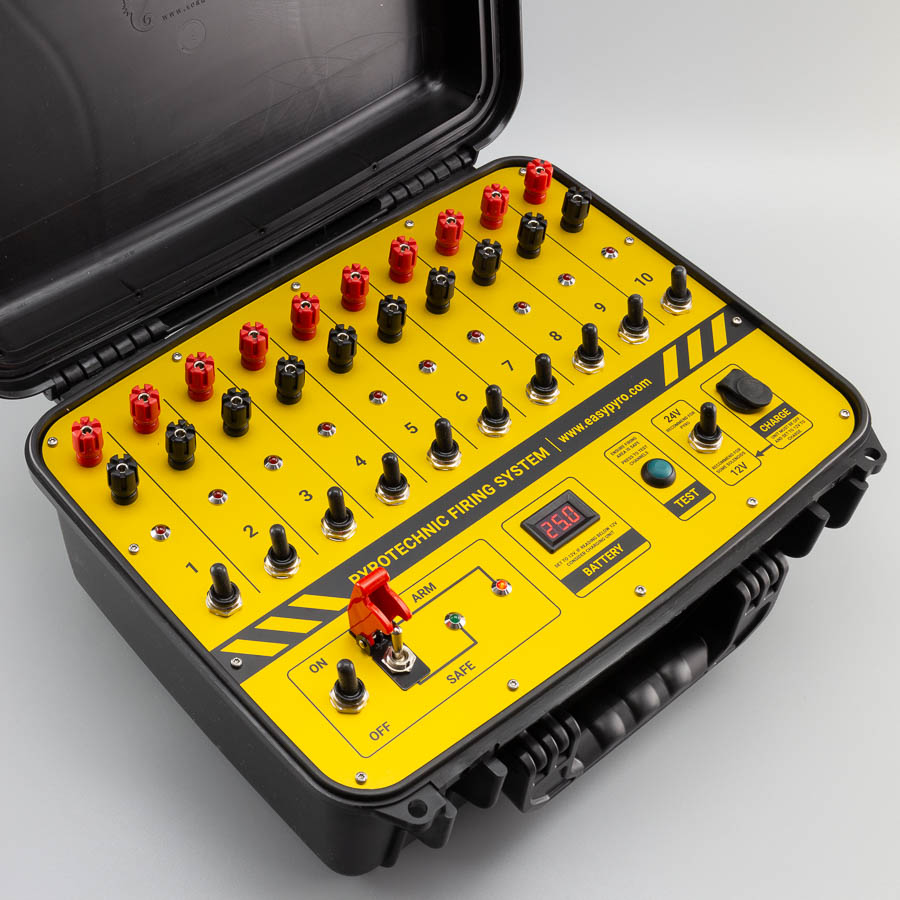

10 Channel Wired Switch Box
High quality wired firing system for all pyrotechnics and solenoids.
Wired Firing System Simplicity
Wired firing systems are the best option when you need a simple firing system that will provide a lifetime of service.
Built strong for SFX
All our wired firing systems (switch boxes) are built robustly for the demanding SFX environment.
Special use cases
Our wired firing systems also provide service in many other pyrotechnic situations such as location safety training, battle simulation, bird netting and live events.
Customisable for you
Each firing system is custom made in our workshop in the UK and can be modified to your requirements.
Latching switches and external battery connectors are two common requests.
Great quality, hasn't missed a beat!
Features
Easy to use
Anyone with minimal training can use our pyrotechnic firing systems safely.
Internal battery option
Designed for easy transportation and deployment.
High quality construction

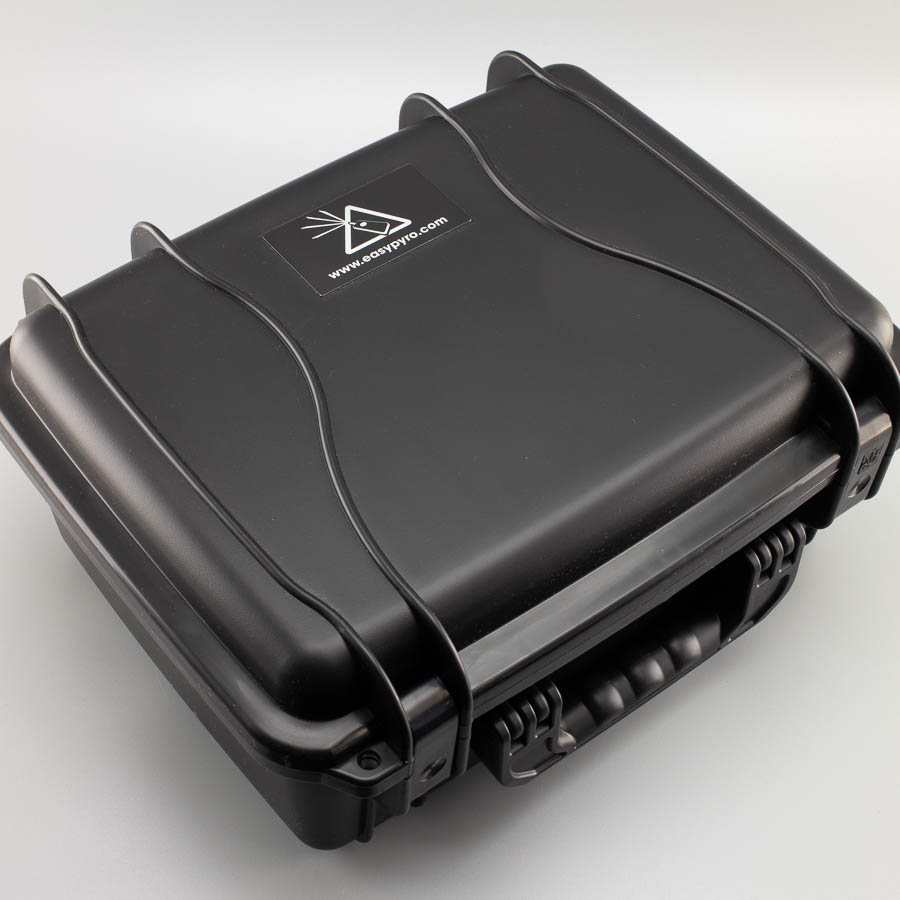

Armoured case, aluminium front panel and high quality components.

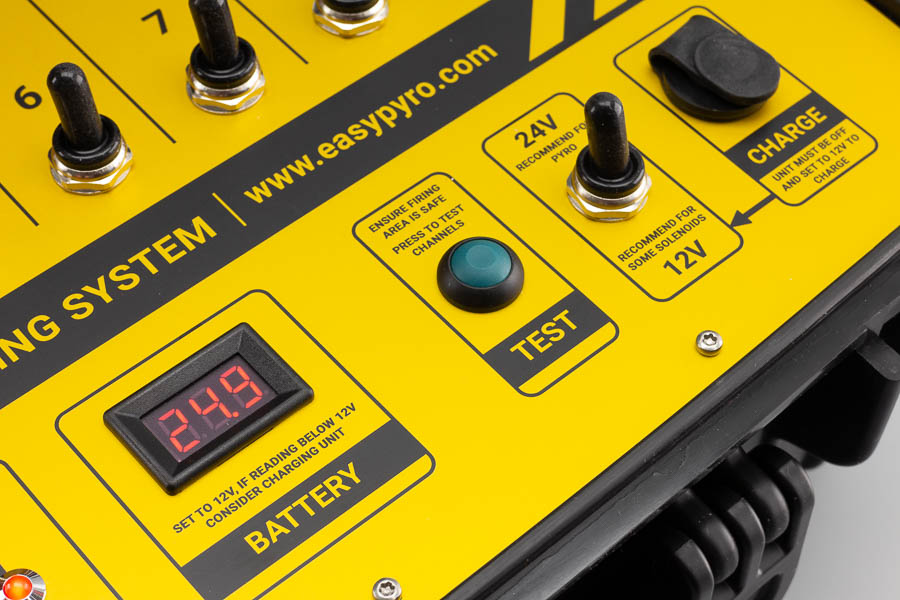

Selectable output voltage
Control 12V and 24V pyro and solenoids.
Waterproof toggle switches
Large rubber booted toggle switches for easy operation.

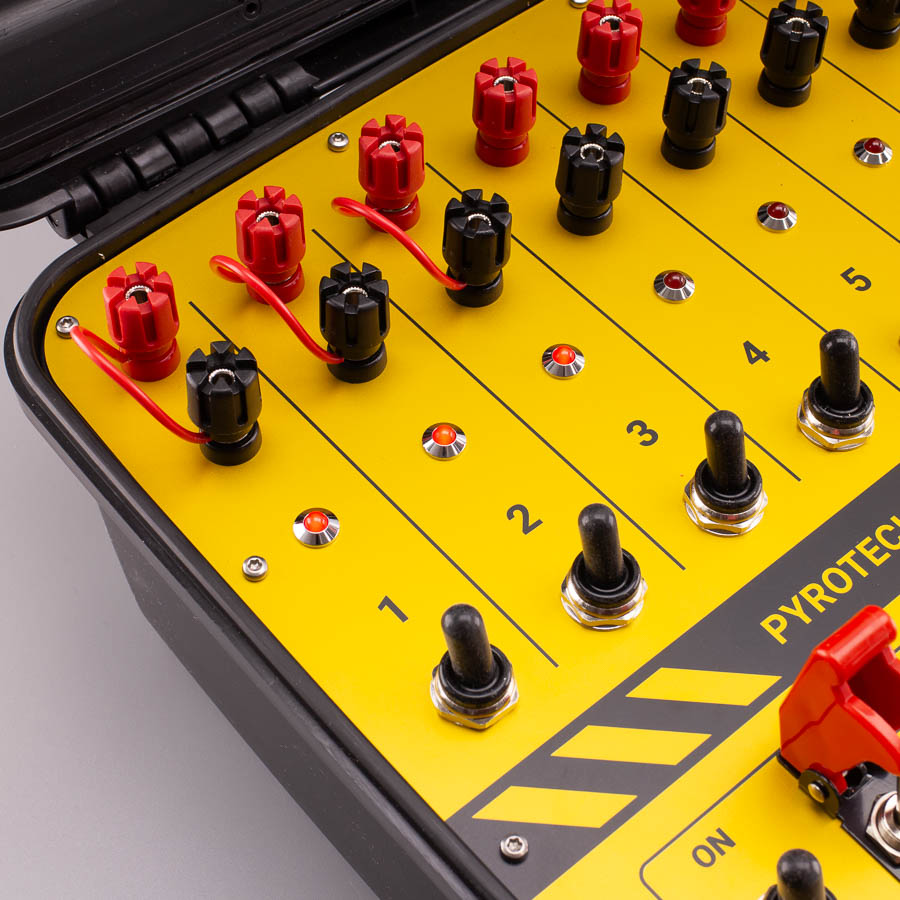

Strong screw down terminals
Nickel plated binding posts for secure connections.

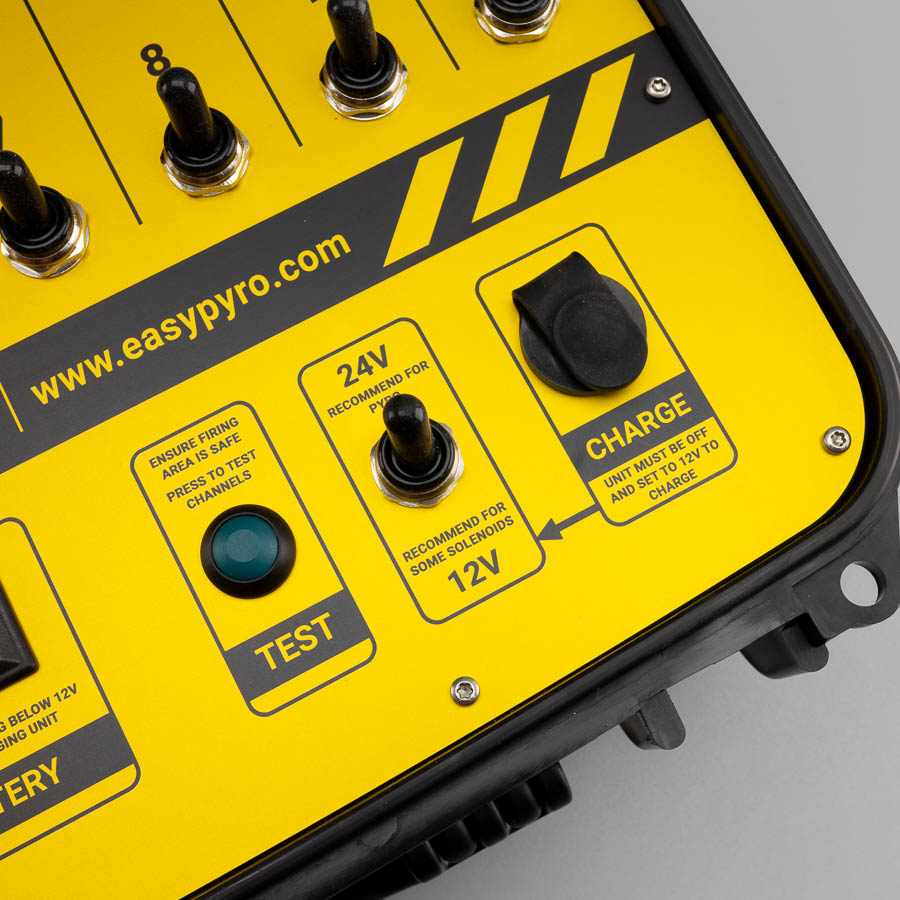

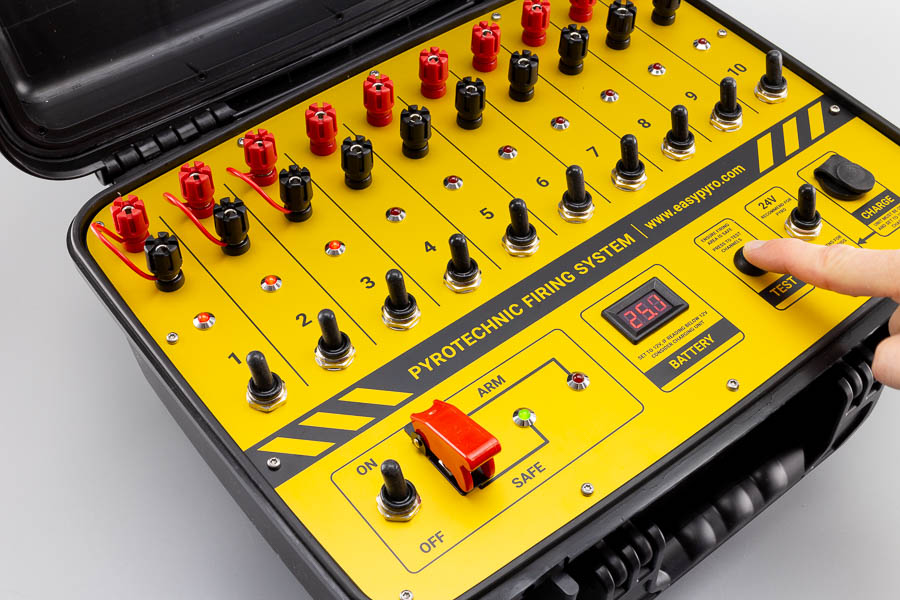

Continuity Test
Bright visual continuity test on all channels.
Pyro & Solenoids
Switch between 12V and 24V for all pyro and solenoids.
Flexible power options
Internal or external battery options.
Technical Specifications
| Size | 38 x 31 x 18 Cm (15 x 12 x 7 Inch) |
|---|---|
| Weight (base unit) | 5.8 Kg (12.8 Lbs) |
| Channels | 10 |
| Output voltage | 12V / 24V |
| Output current | 20+ Amps |
| Test Current | 12 / 24 mA |
| Battery | 2 x 12V SLA |
| Continuity test | ✓ |
| Instant manual firing | ✓ |
| Selectable output voltage | ✓ |
| Small and portable | ✓ |
| Easy to use | ✓ |
